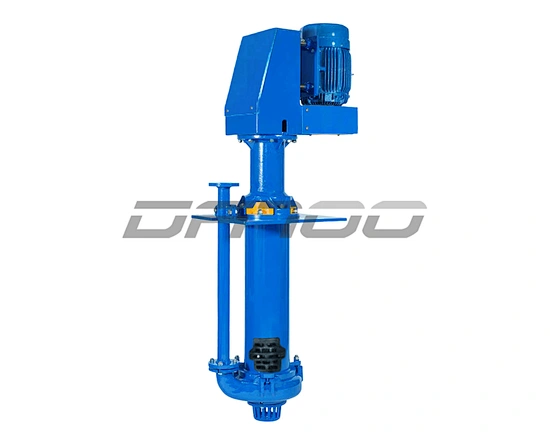

Vertical Centrifugal Sump Pump
DTS(R)
Quantity:

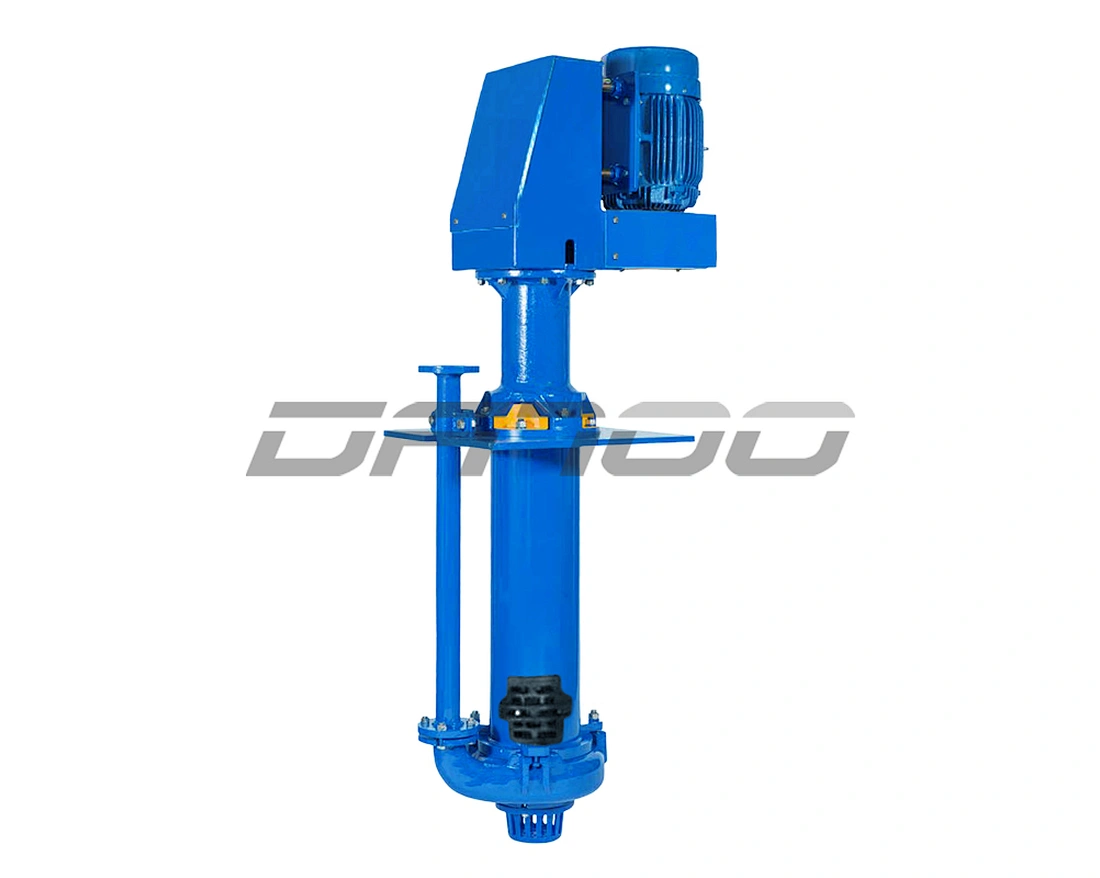

Vertical Centrifugal Sump Slurry Pump
Product: DTS(R) series
Diameter: 40mm-300mm
Flow: 17m3/h-1267m3/h
Head:4m-40m
Seal type: No seal
Description:
Series DTS(R) sump pumps are vertical, centrifugal slurry pumps submerged in water to work.
Wet parts of DTS pumps are made of abrasion-resistant metal.
All parts of type DTS(R) pumps immersed in liquid are lined with rubber outer liner. They are suited to transport non-edge angle abrasive slurry.
The type with"L"is a sump pump of extension shaft series, which is suited for the working condition of deeper level. The guide bearing construction is added to the pump on the basis of the standard pump, so the pump is with both more steady operation and wider application range, but flushing water should be attached to the guide bearing.
Pump code explanation:
Features:
Product: DTS(R) series
Diameter: 40mm-300mm
Flow: 17m3/h-1267m3/h
Head:4m-40m
Seal type: No seal
Description:
Series DTS(R) sump pumps are vertical, centrifugal slurry pumps submerged in water to work.
Wet parts of DTS pumps are made of abrasion-resistant metal.
All parts of type DTS(R) pumps immersed in liquid are lined with rubber outer liner. They are suited to transport non-edge angle abrasive slurry.
The type with"L"is a sump pump of extension shaft series, which is suited for the working condition of deeper level. The guide bearing construction is added to the pump on the basis of the standard pump, so the pump is with both more steady operation and wider application range, but flushing water should be attached to the guide bearing.
Pump code explanation:
Features:
- This sump pump is with single pump casing, vertical cantilever designed;
- To use double suction and open type impeller design, and the impeller could be high chrome alloy of rubber lined material;
- The bearing is used grease lubrication;
- The clearance between the impeller and frame plate could be adjusted, to make sure our pump run in its highest efficient;
- No need any shaft seals;
- The pumps could be direct coupling drive or with belt drive by motor.

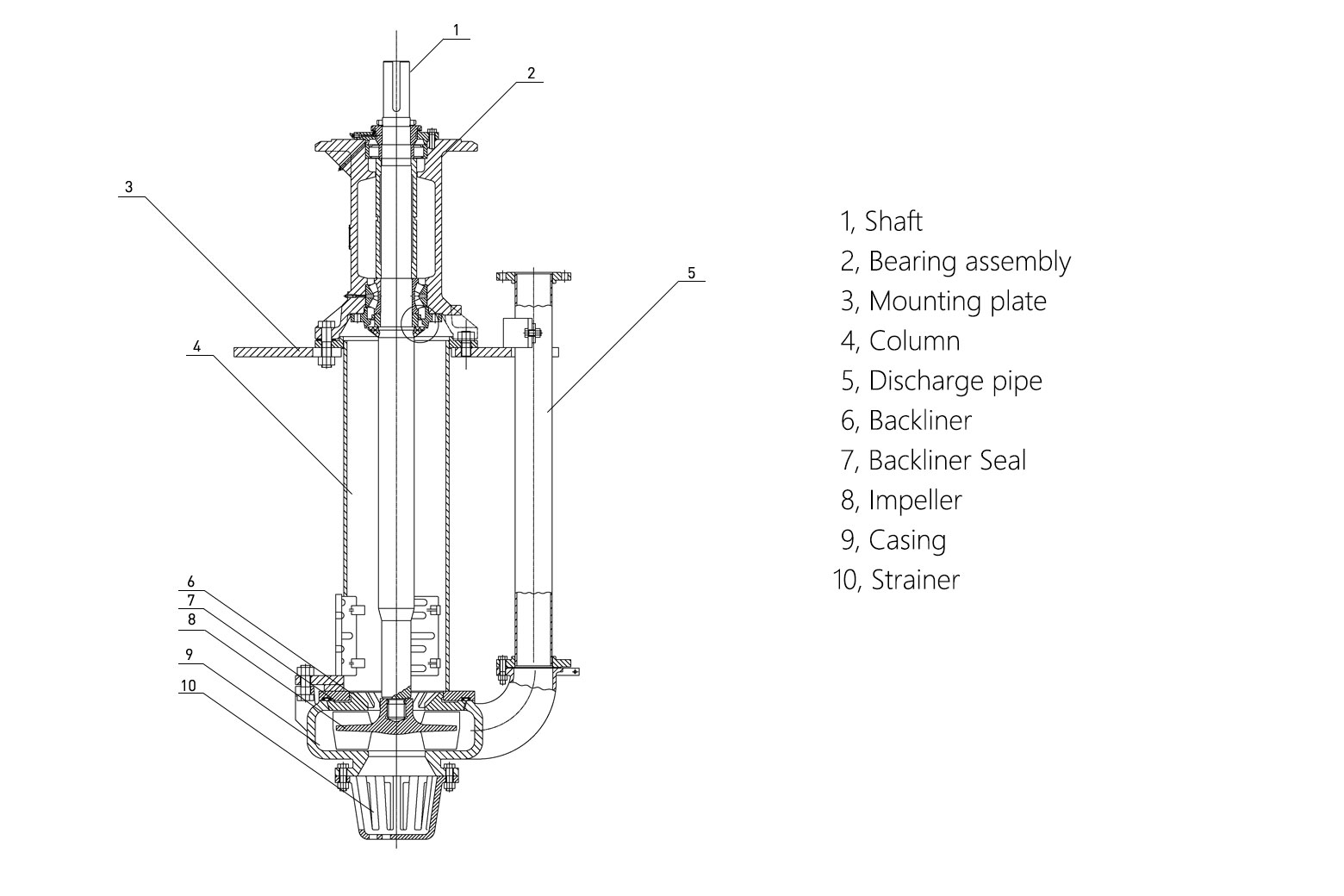

Structure:
Pump Parameter:
Pump Parameter:
| Our Pump Type | Allowable Max Power Kw | Flow | Head M | Pump speed | Efficiency | Vanes | Impeller diameter | |
| m3/h | l/s | r/min | % | mm | ||||
| 40PV-DTS | 15 | 19.44-43.2 | 5.4-12 | 4.5-28.5 | 1000-2200 | 40 | 5 | 188 |
| 40PV-DTSR | 17.28-39.6 | 4.8-11 | 4-26 | 1000-2200 | 40 | 5 | 188 | |
| 65QV-DTS | 30 | 23.4-111 | 6.5-30.8 | 5-29.5 | 700-1500 | 50 | 5 | 280 |
| 65QV-DTSR | 22.5-105 | 6.25-29.15 | 5.5-30.5 | 700-1500 | 51 | 5 | 280 | |
| 100RV-DTS | 75 | 64-289 | 15-80.3 | 5-35 | 500-1200 | 56 | 5 | 370 |
| 100RV-DTSR | 64.8-285 | 18-79.2 | 7.5-36 | 600-1200 | 62 | 5 | 370 | |
| 150SV-DTS | 110 | 108-479.16 | 30-133.1 | 8.5-40 | 500-1000 | 52 | 5 | 450 |
| 200SV-DTS | 110 | 189-891 | 52.5-247.5 | 6.5-37 | 400-850 | 64 | 5 | 520 |
| 250TV-DTS | 200 | 261-1089 | 72.5-302.5 | 7.5-38.5 | 400-750 | 60 | 5 | 575 |
| 300TV-DTS | 200 | 288-1267 | 80-352 | 6.5-38 | 350-700 | 50 | 5 | 610 |
